Glow Discharge Optical Emission Spectroscopy (GDOES) Analysis

GDOES analysis sputters a sample in an argon plasma and reads the light the sputtered atoms emit, giving fast elemental depth profiles of coatings, platings, multilayers and surface treatments from a few nanometers to about 100 µm deep. It measures nearly every element at once, including hydrogen, carbon, nitrogen, oxygen and lithium.

What Is Glow Discharge Optical Emission Spectroscopy (GDOES)?

GDOES is a technique for elemental composition analysis and depth profiling of solids. It’s especially well suited to thin and thick films and to multilayer stacks, because it profiles through every layer in a single run.

GDOES needs little sample preparation and gives results in minutes. It measures many elements at the same time, including light elements such as H, C, N and O, and it captures surface and bulk composition in one measurement.

High Depth Resolution

Depth profiles with resolution as fine as about 1 nm.

Wide Element Range

Measures nearly all elements, including light ones such as H, C, N, O and Li.

Fast Multi-Element Profiling

Detects all elements at once, so a full profile takes minutes.

Why Use GDOES?

GDOES is a fast, quantitative way to measure elemental composition through the depth of a solid material. Because it detects all elements at once, including light elements that many techniques miss, it can show where hydrogen, carbon or lithium sits in a coating or electrode in a single run.

It’s well suited to thin films, multilayers and coatings on metals, semiconductors, glass and ceramics. Typical uses are R&D, quality control of platings and coatings, and failure analysis of layers that delaminate or corrode.

Rapid Layer Insight

Fast, accurate composition profiles for multilayer films and coatings.

Minimal Sample Prep

Little or no preparation, which shortens turnaround.

Broad Material Compatibility

Metals, alloys, semiconductors, glass and ceramics, with high repeatability.

How GDOES Works

A low-pressure argon plasma sputters away the sample surface, layer by layer (1). As atoms leave the surface they enter the plasma, where they’re excited and emit light at wavelengths specific to each element (2). An optical emission spectrometer reads all of those wavelengths at once (3), and the intensity of each emission line is proportional to that element’s concentration. Because sputtering time corresponds to depth, the result is a depth profile of composition from the surface down (4). On our instrument, Differential Interferometry Profiling (DiP) measures crater depth directly during the run, so the depth scale is measured rather than estimated.

Four-step GDOES workflow: argon plasma sputters the surface, sputtered atoms emit light, a spectrometer reads all elements, and the data become a depth profile
How GDOES works: (1) an argon plasma sputters the surface layer by layer, (2) sputtered atoms emit light at element-specific wavelengths, (3) the spectrometer reads all elements at once, (4) the signals become a composition-versus-depth profile, calibrated with DiP.

Equipment Used for GDOES

We run GDOES on a Horiba GD-Profiler 2 pulsed RF glow discharge optical emission spectrometer with Differential Interferometry Profiling (DiP). It profiles thin and thick coatings quickly, measures erosion depth with nanometer precision, handles both conductive and insulating samples, and detects elements from trace levels to bulk.

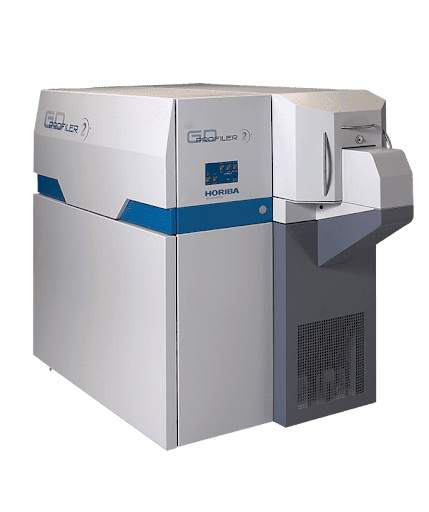

Horiba Profiler 2 Pulsed-RF Glow Discharge Optical Emission Spectrometer

  • Spectral range: 120 nm to 800 nm
  • Simultaneous measurement of all elements, including light elements H, C, N, O, F and Li
  • Spot size: 2 to 8 mm
  • Depth resolution: as low as about 1 nm
  • High dynamic range detector: linear acquisition range of 5 × 10⁹
  • Plasma sputtering ion energy: 50 eV
  • Pulsed RF frequency: 13.56 MHz
  • Anode tube diameter: 4 mm
  • Differential Interferometry Profiling (DiP): measures crater depth during the run
Specifications

Key Differentiators

GDOES vs XPS vs Dynamic SIMS Depth Profiling

 GDOESXPSDynamic SIMS
SpeedMinutes per profileSlow (etch-and-measure cycles)Slow
Depth rangeNanometers to ~100 µmTop ~10 nm, deeper with ion etchingNanometers to microns
Sensitivityppm to wt%~0.01–0.5 at%Highest (trace dopants)
Analysis area2–8 mm spot10–400 µm spotSmall area
Best forThick coatings, platings, multilayers, fast QCSurface chemistry and chemical statesDopants and trace impurities

Strengths

  • Wide dynamic range, from ppm to wt%.
  • Covers nearly the whole periodic table, including light elements.
  • Nanometer-scale depth resolution.
  • Fast depth profiles, in minutes.
  • Minimal sample preparation.
  • Profiles complex layered materials quickly.

Limitations

  • Less sensitive than glow discharge mass spectrometry (GD-MS) for trace elements.
  • Composition and depth scales both need calibration (DiP measures depth directly on our instrument).
  • Sputtering can cause some light elements to diffuse, which limits accuracy for those elements.
  • Averages over a 2 to 8 mm spot, so it can’t map small features. For those, use SEM-EDS or SIMS.

Example Outputs

The depth profile of a CuInGaSe Solar Cell shows how GDOES can be used to extract quantitative compositional information as a function of penetration depth into a sample after some additional analytical steps are performed (as described in this application note). From: Horiba

Depth profile of Na2O and K2o in ion exchanged chemically strengthened glass.

Sample Requirements

  • Solid, flat, smooth, rigid samples
  • At least as wide as the 2 to 8 mm spot, so the plasma seals against the surface
  • Conductive samples work best
  • Insulating samples can be analyzed with pulsed RF, though some need extra method development
  • Air-sensitive samples can be transferred without air exposure

GDOES Applications by Industry

Metallurgy

Verify alloy composition and measure oxide and coating thickness for routine quality control.

Photovoltaics

Measure the thickness and composition of multilayer solar cells and check interface quality and interdiffusion.

Energy & Battery Manufacturing

Profile electrodes to see how deep lithium has diffused.

Consumer Electronics

Identify and quantify impurities in specific layers of printed circuit boards and their finishes.

Aerospace & Composites

Measure the thickness and composition of protective coatings.

Glass & Optics

Profile ion-exchanged and coated glass, such as the sodium and potassium exchange in chemically strengthened glass.

Techniques That Complement GDOES

XRF
Faster, simpler, non-destructive, but with lower sensitivity and less surface-specificity than GDOES. Limited ability to measure light elements.
Add to Quote
GD-MS

GD-MS offers better sensitivity than GDOES for most elements, down to trace levels, but is generally limited to bulk analysis rather than depth profiling.

Add to Quote
Surface and near-surface chemical analysis. Non-destructive alternative to GDOES for surface chemical composition. Limited ability to measure light elements like H and Li.
Add to Quote

GDOES Testing Services at Covalent

GDOES runs in our Sunnyvale Core Lab on a Horiba GD-Profiler 2 with Differential Interferometry Profiling (DiP), which measures crater depth directly for accurate depth scales. We handle conductive and insulating samples and offer air-free transfer for sensitive materials such as battery electrodes. Our scientists also correlate GDOES profiles with XPS, SEM-EDS and other in-house techniques when a question needs more than composition. For techniques we don’t run in-house, we can place work through Covalent Connect, our network of trusted partner labs.

Turnaround is typically 5–7 business days, with rush options available at an extra cost.

Frequently Asked Questions

What types of materials can be tested with GDOES?

Most reasonably hard, flat solids, including metals and alloys, semiconductors, glass, ceramics and some plastics.

What information does GDOES provide?

When calibrated, GDOES gives elemental composition as a function of depth. That covers bulk composition, layer thickness, and interfaces between layers.

How deep can GDOES analyze?

GDOES reliably profiles up to about 100 µm into a material, with depth resolution as fine as about 1 nm near the surface.

Why use GDOES instead of another surface analysis technique?

GDOES profiles much faster than SIMS or XPS and measures light elements such as H and Li. It’s the better choice for thick coatings and multilayers when you need a full profile quickly.

Does GDOES require special sample preparation?

Very little. Some samples need to be cut to size or polished flat.

How long does a typical GDOES test take?

Once the method is set up and calibrated, a single profile takes a few minutes. Turnaround for a project is typically 5–7 business days, with rush options available at an extra cost.

Can GDOES measure coating thickness and composition at the same time?

Yes. One profile shows how composition changes through each layer, and the points where the elements change give the layer thicknesses. With DiP, the depth scale is measured directly.

What is the difference between GDOES and GD-MS?

Both sputter the sample with a glow discharge. GDOES reads the light the atoms emit and is best for fast depth profiles. GD-MS (glow discharge mass spectrometry) detects the ions with a mass spectrometer, which makes it more sensitive for trace elements, but it’s mainly used for bulk purity rather than depth profiling.
