UV-Vis-NIR Spectrophotometry Testing

Don’t have a UV-Vis-NIR spectrophotometer in-house? We run the measurement for you. Our lab uses a PerkinElmer LAMBDA 1050+ to measure transmittance, reflectance and absorbance from 175 to 3,300 nm on thin films, glass, coatings, optics, powders and liquids, and reports the spectra along with band gap, color and haze where you need them.

What Is UV-Vis-NIR Spectrophotometry?

UV-Vis-NIR spectrophotometry measures how much light a material transmits, reflects or absorbs at each wavelength across the ultraviolet, visible and near-infrared range. A UV-Vis-NIR spectrophotometer compares the light that leaves the sample with the light that went in, and plots the result as a spectrum.

That spectrum shows how a film, coating or optic will perform. It can confirm that an anti-reflective coating meets its reflectance target, show where a semiconductor starts to absorb (its band gap), or measure the color and haze of a plastic part. The measurement is fast and non-destructive, so the same sample can go on to other tests.

What UV-Vis-NIR measures:

  • Specular and total transmittance and reflectance
  • Absorbance and optical density
  • Band gap of semiconductors and oxides
  • Film thickness from interference fringes, for single layers
  • Color coordinates and haze
  • Concentration of absorbing species in solution

Broad Wavelength Coverage

Measures from 175 to 3,300 nm, from the ultraviolet through the visible to the near-infrared.

Versatile Sample Compatibility

Measures thin films, powders, liquids, coatings and bulk solids.

Non-Destructive Optical Measurement

Measures transmittance, reflectance and absorbance without changing or damaging the sample.

Why Use UV-Vis-NIR?

UV-Vis-NIR is often the quickest way to answer how a film, coating or optic handles light. It covers the full range from UV to near-infrared in one measurement and needs little sample preparation. The results tie directly to performance specs such as transmittance, reflectance, color and band gap.

Precise Optical Characterization

Measures band gap, single-layer film thickness and small spectral shifts that reveal changes in a coating or film.

Fast and Flexible Analysis

Gives results quickly on solids, films, powders and liquids, with an integrating sphere for rough or scattering samples.

Built for Quality Control

Checks coatings against reflectance and transmittance specs, and tracks color, haze and band gap from lot to lot.

How UV-Vis-NIR Works

A broadband lamp produces light from the ultraviolet to the near-infrared (1). A monochromator splits that light and passes one narrow band of wavelengths at a time (2). The selected light hits the sample (3), where part of it is transmitted through and part is reflected. For rough or scattering samples, an integrating sphere collects the diffuse light as well.

Detectors measure the light that comes back (4). A photomultiplier covers the UV and visible range, and cooled InGaAs and PbS detectors cover the near-infrared. The instrument steps through every wavelength in the range and plots percent transmittance, percent reflectance or absorbance against wavelength (5). Because transmittance, reflectance and absorbance add up to 100%, measuring two of them gives the third.

Diagram of how UV-Vis-NIR spectrophotometry works: light source, monochromator, sample transmission and reflection, detectors, spectrum
How UV-Vis-NIR works: (1) broadband light source, (2) monochromator selects one wavelength, (3) light is transmitted or reflected by the sample, (4) PMT, InGaAs and PbS detectors, (5) spectrum of %T, %R or absorbance versus wavelength.

Equipment Used for UV-Vis-NIR

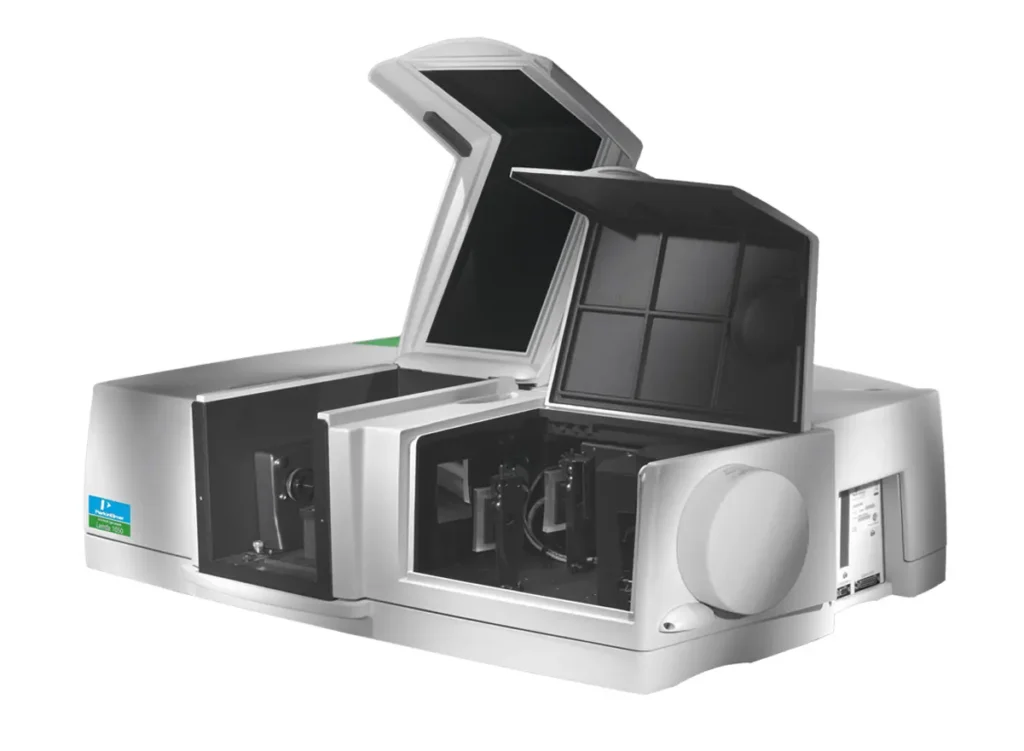

Perkin Elmer LAMBDA 1050

This tool offers the highest performance and flexibility and is well known for its capability for ultra-high UV-Vis-NIR performance.

  • Spectral range: 175 to 3300 nm with double-beam, double-monochromator optical design for ultra-high precision.
  • Triple-detector configuration: PMT for UV-Vis plus Peltier-cooled InGaAs and PbS detectors for extreme NIR sensitivity and extended range.
  • Very low stray light and photometric noise enable accurate measurements on highly absorbing or highly reflective samples.
  • Flexible sampling with large primary and secondary compartments and modular snap-in accessories to support a wide variety of UV-Vis-NIR applications.
Specifications

Strengths and Limitations of UV-Vis-NIR

Strengths

  • Non-destructive, so samples can be reused for other tests
  • Fast, precise measurements across 175 to 3,300 nm
  • Measures solids, films, powders and liquids, not only mirror-like surfaces
  • Integrating sphere captures total and diffuse transmittance and reflectance
  • Needs less modeling than spectroscopic ellipsometry

Limitations

  • Gives limited chemical information; FTIR or Raman is better for identifying compounds
  • Overlapping absorption peaks make it hard to separate components in complex samples
  • Scattering from bubbles or suspended particles can distort results
  • Below about 190 to 200 nm, the beam path must be purged with nitrogen
  • For multilayer stacks, ellipsometry gives more accurate thickness and optical constants

Example Output

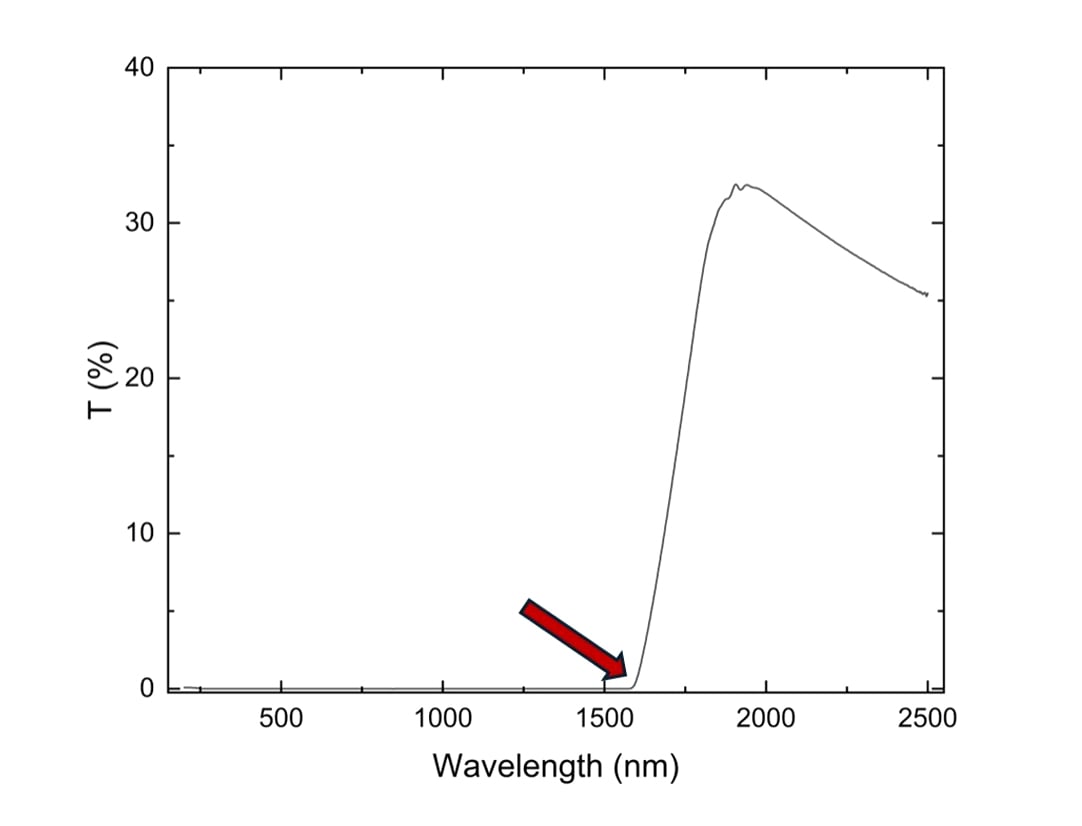

UV-Vis-NIR spectrophotometry has various types of output spectra in the form of transmittance, absorbance, or reflectance. While optical coating results are mostly shown as reflectance or transmittance curves, the output for semiconductors is shown in transmission or absorbance curves. The following is a typical output of a semiconductor transmittance curve. The sample starts absorbing when the energy of light is higher than the bandgap energy of the sample (given by the arrow). In general, Reflectance (R) + Transmittance (T) + Absorbance (A)= 100 A = 100 – (T+R) Material properties such as bandgap can be obtained from the absorbance of sample as long as the sample is a single layer.

Sample Requirements

  • Solids, glass and coated parts: flat samples work best. Transmittance needs a transparent or semi-transparent substrate. Reflectance works on any substrate.
  • Thin films: for thickness from interference fringes, send a single-layer film on a known substrate, plus a bare substrate if you have one.
  • Powders: measured in diffuse reflectance with the integrating sphere.
  • Liquids: measured in quartz cuvettes for the UV range. Glass or plastic cuvettes are fine for visible and NIR only.



Tell us the wavelength range, the measurement type (transmittance, reflectance or both) and any angle or polarization you need.

UV-Vis-NIR Spectrophotometry Applications by Industry

Semiconductor

Band gap of semiconductors and metal oxides, film thickness and optical constants of thin films

Optics and coatings

Transmittance and reflectance of anti-reflective, high-reflective and filter coatings, coating uniformity

Displays and solar

Transparent conductor transmittance, absorber band gap, coating performance

Materials & Manufacturing

Color, haze and appearance of plastics, paints, glass and ceramics

Life sciences

Purity and concentration of proteins and nucleic acids from UV absorbance

Techniques That Complement UV-Vis-NIR

Covalent is equipped with alternative optical spectroscopy, such as SE, FTIR, Raman, PL, and XPS, to replace or complement UV-Vis-NIR according to the use cases.

Identifies chemical bonds from 2.5 to 25 µm and extends measurements past the UV-Vis-NIR range.

Add to Quote

Identifies molecular structure and crystal phase to cross-check UV-Vis-NIR results.

Add to Quote

Measures film thickness and optical constants (n and k) with higher accuracy, especially in multilayer stacks.

Add to Quote

UV-Vis-NIR Testing Services at Covalent

Our Sunnyvale lab runs UV-Vis-NIR on a PerkinElmer LAMBDA 1050+ with an integrating sphere, so we measure total and diffuse transmittance and reflectance as well as specular. Variable-angle and custom accessories cover measurements that a standard setup can’t handle. When you need more than a spectrum, we combine UV-Vis-NIR with spectroscopic ellipsometry, FTIR or Raman on the same sample. For methods we don’t run in-house, we can place work through Covalent Connect, our network of trusted partner labs.

Turnaround is typically 5–7 business days, with rush options available at an extra cost.

Frequently Asked Questions

How is UV-Vis-NIR different from standard UV-Vis?

Standard UV-Vis covers roughly 190 to 1,100 nm. UV-Vis-NIR extends into the near-infrared, up to 3,300 nm on our instrument, which is needed for telecom optics, NIR filters, solar materials and many coatings.

Can you run UV-Vis-NIR if I don’t own a spectrophotometer?

Yes. Send us your samples and we run the measurement and send you the spectra and analysis. You don’t need an instrument or software of your own.

How does UV-Vis-NIR work for thin films?

It measures how much light a film transmits and reflects at each wavelength. From those spectra we can calculate band gap and, for single-layer films, thickness and optical properties.

Is UV-Vis-NIR non-destructive?

Yes. The sample isn’t changed or damaged, so it can be used for other tests afterwards.

What types of samples can you measure?

Thin films and coatings, glass and optics, plastics, powders, solids and liquids in cuvettes.

Which cuvette should I use?

Quartz cuvettes transmit UV light and work across the full range. Glass or plastic cuvettes are fine if you only need visible or NIR data.

When should I use UV-Vis-NIR instead of ellipsometry?

Use UV-Vis-NIR for transmittance, reflectance and absorbance spectra on almost any sample type. Use spectroscopic ellipsometry for precise thickness and optical constants (n and k), especially in multilayer films.

What’s the difference between UV-Vis-NIR and FTIR?

UV-Vis-NIR measures electronic absorption from 175 to 3,300 nm. FTIR measures molecular vibrations at longer infrared wavelengths and is used to identify chemical bonds.

How long does UV-Vis-NIR testing take?

Turnaround is typically 5–7 business days, with rush options available at an extra cost.
